A Case Study: Host Hotels & ResortsHost Bethesda, Maryland, USA.


When Host was moving their headquarters to Bethesda, Maryland, the designers wanted to create a design concept that boasted a textural field that gets exponentially smaller as you move away from the focal point. In addition to this design goal, they needed to provide a sustainable and effective acoustic environment for both their twostory lobby area as well as the formal and informal meeting areas that surround.

Ensuring an acoustic environment that is both sustainable and efficient.

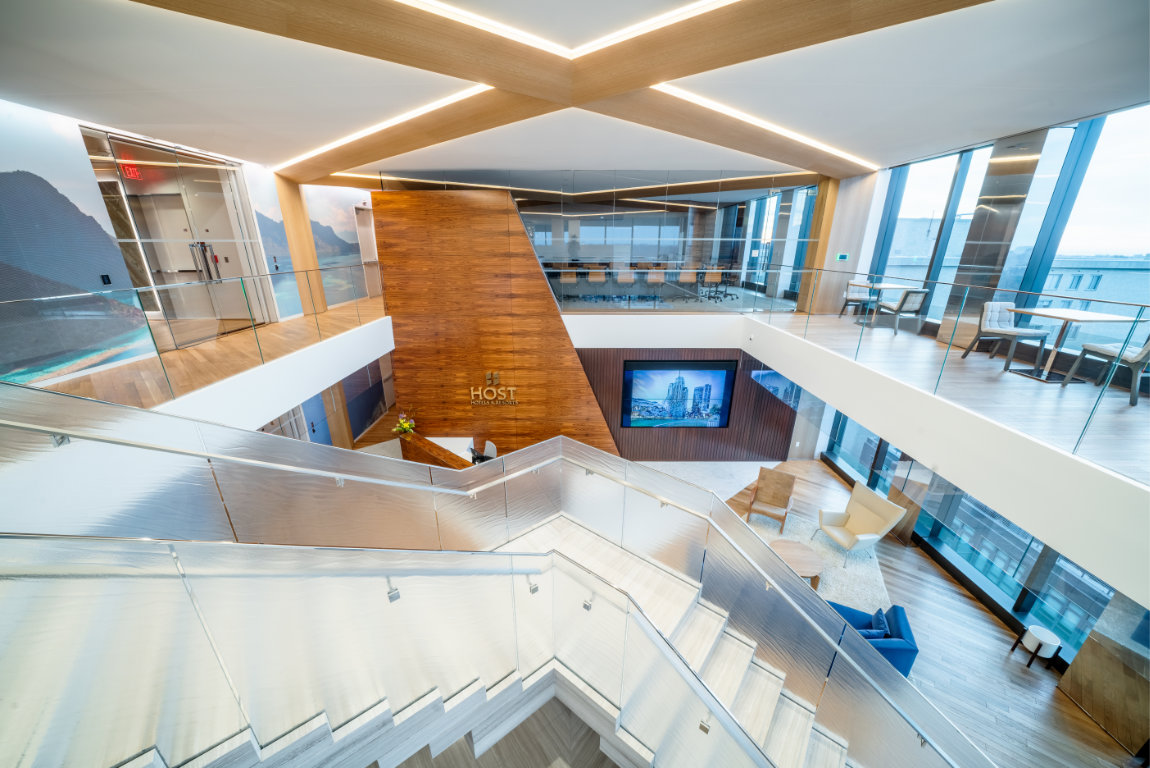

Lobby of the Host Hotels & Resorts corporate headquarters in Bethesda, Maryland.
Lobby of the Host Hotels & Resorts corporate headquarters in Bethesda, Maryland.



Optimize the acoustics on a volume of 2 floors

The architects at Gensler DC worked closely with the CLIPSO team to develop and enhance the design function of this space based on their budget guidelines, achieving effective acoustic performance, and most importantly maintaining their design goal. Due to the two-story nature of the space, CLIPSO recommended using the a 2” system to include Acoustic 495 D coverings and LA 54 acoustical batting, together offering an NRC value up to 1.05.

CLIPSO responds to the specific problems of each site!

Most of the ceiling throughout the space was directly attached using perimeter tracks. However, there was a specific area behind the diamond ceiling feature that would require access to mechanical equipment. For this area, CLIPSO used a 42 mm thick aluminum profiles to create a self-supported acoustic frame system, utilizing the CLIPSO Torsion Spring mounting system which would allow the flexibly to maintain the design intent, maintain the acoustic performance, and also provide accessibility to a critical and technical area.

Fastening profiles allowing access to a critical and technical area.

First floor lobby of Host Hotels & Resorts in Bethesda, Maryland.
First floor lobby of Host Hotels & Resorts in Bethesda, Maryland.

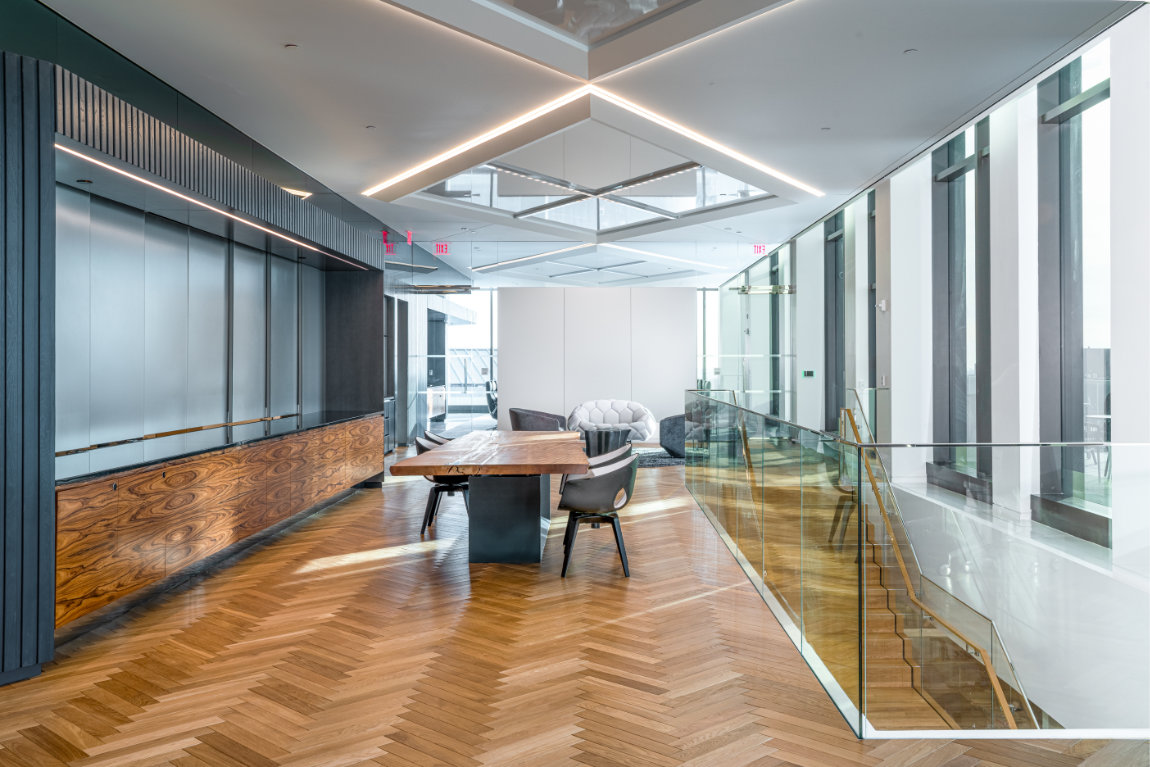

Common Areas - Host Hotels & Resorts in Bethesda, Maryland.
Common Areas - Host Hotels & Resorts in Bethesda, Maryland.



A unique performance oriented design with breathtaking rendering.

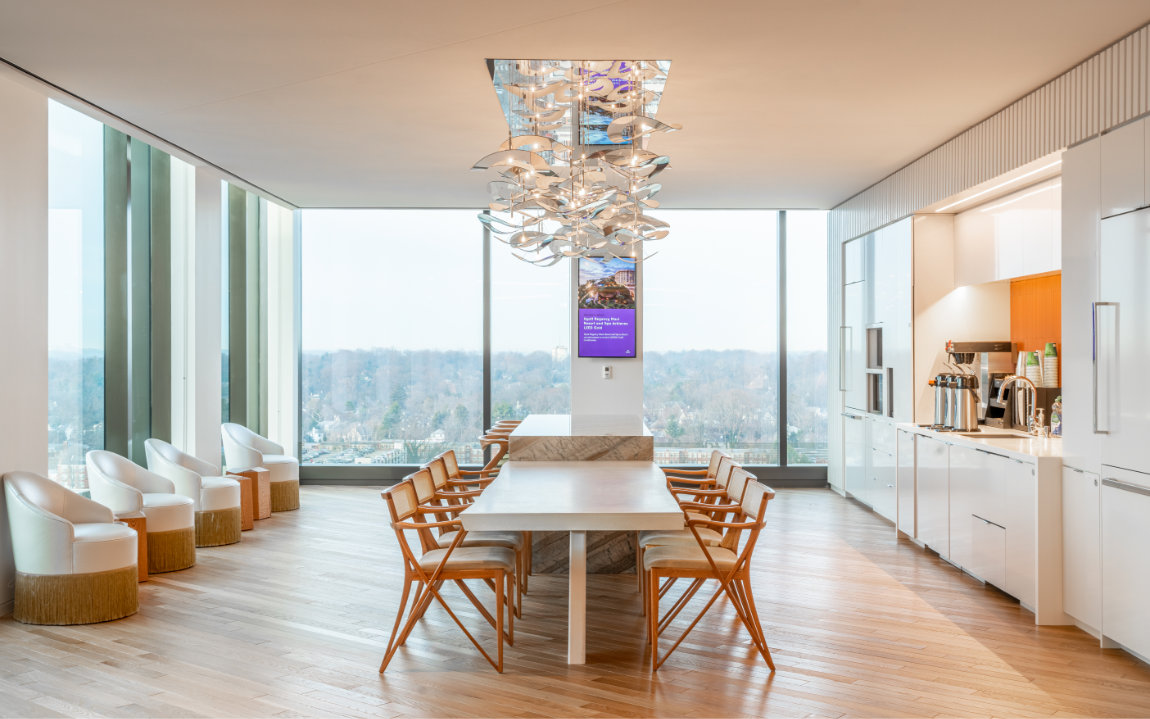

Dining Room - Host Hotels & Resorts in Bethesda, Maryland.
Dining Room - Host Hotels & Resorts in Bethesda, Maryland.



The architect and the client were thrilled when they saw the result. CLIPSO effectively worked hand-in-hand with the experts at Gensler DC, and the installation gurus at The Huff Company, Inc., to create a singlesource, performance-driven design with breathtaking results!

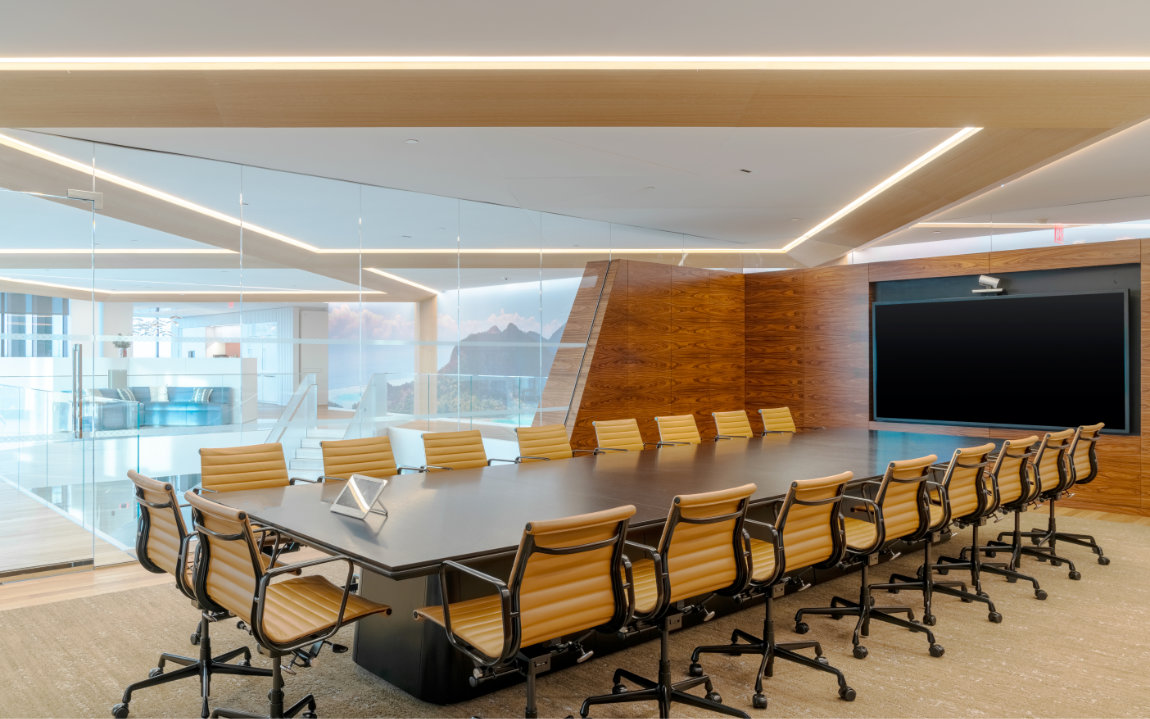

Meeting Room - Host Hotels & Resorts in Bethesda, Maryland.
Meeting Room - Host Hotels & Resorts in Bethesda, Maryland.



Project: Host Hotels & Resorts Headquarters, Bethesda, MD
Architect: Gensler DC
Installer: The Huff Company, Inc.

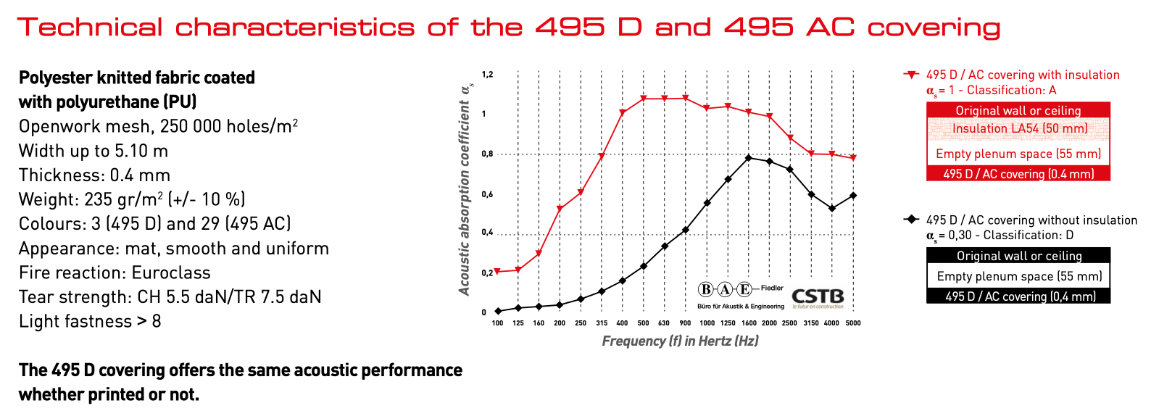

Technical characteristics of the 495 D and 495 AC covering

Other acoustic tests are available on your Espace Pro, or by contacting our sales department:
service.commercial@clipso.com



Download the prestige project
